  • Bridge inclined plane Tripod Turnstile gate ZOJE-S706
  • Bridge inclined plane Tripod Turnstile gate ZOJE-S706

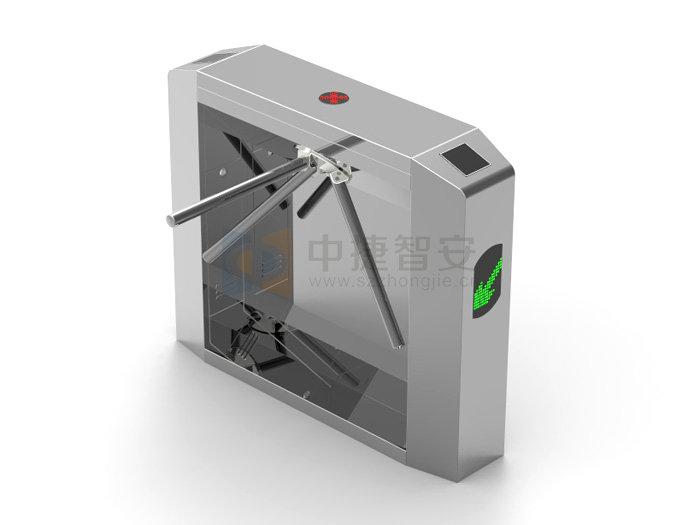

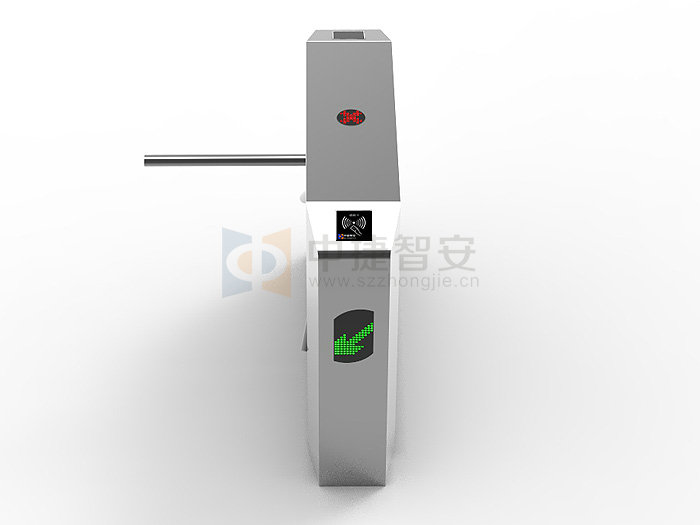

Bridge inclined plane Tripod Turnstile gate ZOJE-S706

Product Categories:tripod turnstile
Tripod Turnstile, Turnstile Gate
National Hotline:4009-969-805
  • product description
  • Product Specifications
Model No. Semi Automatic
Material Stainless Steel 304 Stainless Steel 304
Dimension  L1200mm×W280mm×H1000mm L1200mm×W280mm×H1000mm
Net/Gross Weight 55kg/65kg 55kg/65kg
Passage Width 550mm 550mm
Direction Single / Bi-directional Single / Bi-directional
Power Supply AC220V/110V, 50/60Hz AC220V/110V, 50/60Hz
Operation Voltage DC 24V 3A DC 24V 3A
Operation Temperature -35℃– 60℃ -35℃ – 60℃
Operation Humidity 95% (No freeze) 95% (No freeze)
Working Environment Indoor / Outdoor Indoor / Outdoor
Flow Rate 40 people per minute 40 people per minute
LED Indicator Yes Yes
Input Dry contact/Relay Dry contact/Relay
Communication TCP/IP TCP/IP
Emergency  Arm drop automatic  Arm drop automatic
Working Environment   Indoor or Outdoor   Indoor or Outdoor
Waterproof IP67 IP67

Technical parameter:
Outline dimensions:?L1200mm*W280mm*H1000mm (1400mm optional)?
Material:?SS304 stainless steel technology: light wire drawing type
Material thickness:?1.2mm/1.5mm/2.0mm optional
Channel width:?less than 600mm
Control mode:?automatic / semi-automatic / Mechanical
Way:?one-way / two-way
Control software:?access control attendance management system / electronic ticketing management system / consumer management system, etc.
Read / write mode:?ID card / IC card /EMcard / fingerprint face recognition / QR code / static test instrument
Working environment:?indoor / outdoor?
Power supply:?AC200V/AV110V (optional) 50HZ
Working environment temperature:?-70 C -15 C
Relative humidity:?less than 95%, no condensation
Pass speed:?40/ minutes
Input interface:?relay signal
Normal service life:?3 million times no fault
Communication interface:?RS485/TCPIP
Scalable:?counting function, voice alarm function, video capture function.
